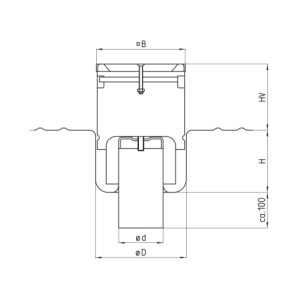

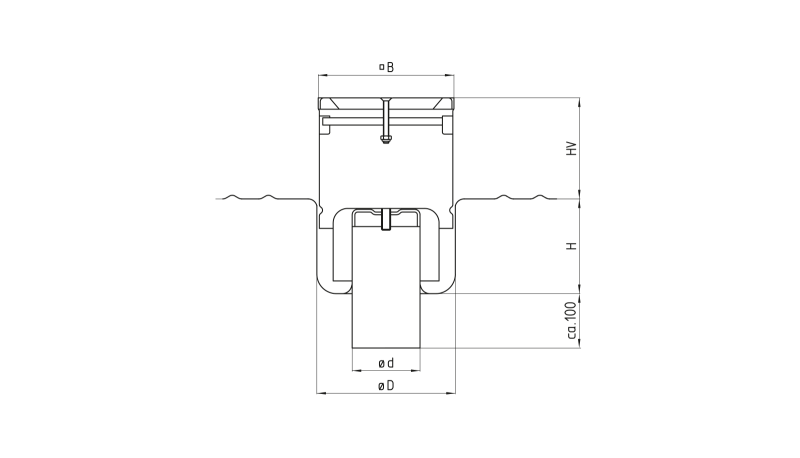

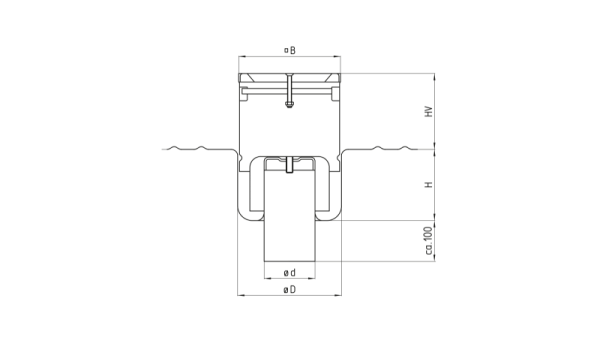

| Model | DN | Ø d [mm] |
diag. B [mm] |
Ø B [mm] |
Ø D [mm] |
H [mm] |
HV [mm] |
Silt box volume [ l ] | Flow rate [l/s] |
| SSK-050-ES-HV | 50 | 50 | 150 | – | 153 | 106 | 60-110 | – | > 1.0 |
| SSK-070-ES-HV | 70 | 75 | 150 | – | 153 | 106 | 60-110 | – | > 1.5 |
| SSK-100-ES-HV | 100 | 110 | 197 | – | 190 | 119 | 60-110 | – | > 2.8 |
Inlet rim: square
Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
Description for use in tenders:

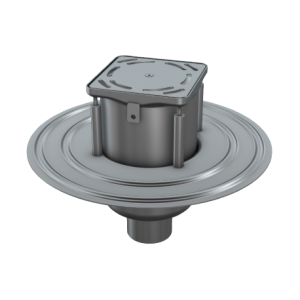

Adjustable-height sanitary drain, two-part, Model SSK, according to EN 1253. Upper-part can be infinitely height adjusted and twisted, without sealing ring. Square inlet rim has been seamlessly shaped to fit the housing. To achieve a high self-cleansing effect, the bottom of the housing has large and deep-drawn inside radii. With stainless steel screwed plate cover and air trap. Vertical drain necks. Surface grain blasted.
