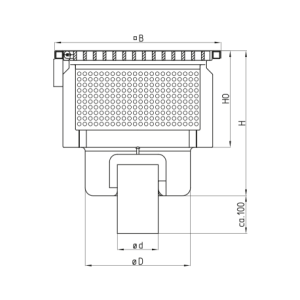

| Model | DN | Ø d [mm] |
diag. B [mm] |
Ø D [mm] |
HO [mm] |
H [mm] |
Silt box volume [ l ] | Flow rate [l/s] |
| 75-400-100-E-S | 100 | 110 | 447 | 283 | 260 | 400 | 19 | > 2,8 |
| 75-400-150-E-S | 150 | 160 | 447 | 283 | 260 | 400 | 19 | > 8,2 |
| 75-600-200-E-S | 200 | 200 | 647 | 356 | 260 | 400 | 49 | >12,5 |
Inlet rim: square
Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
Description for use in tenders:

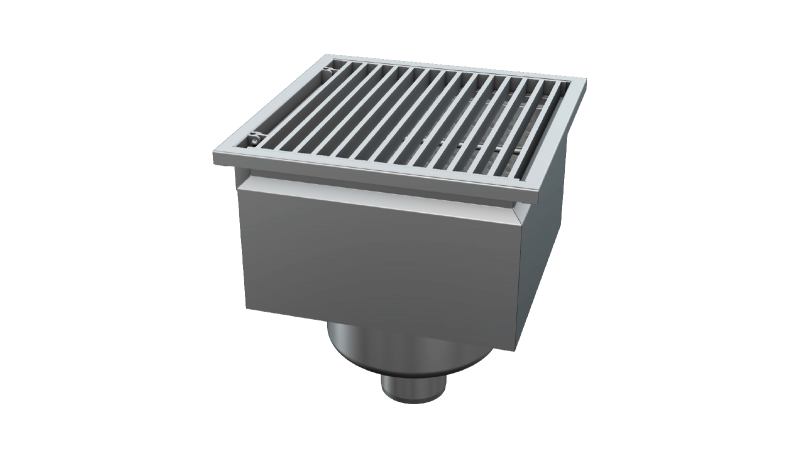

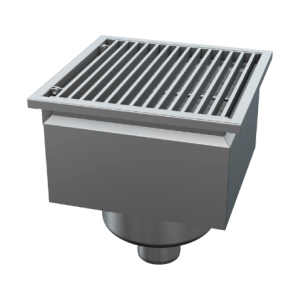

Industrial large-size drain, single-part, Model 75, according to EN 1253. Edge protection reinforced by internal welded square profiles. The grate rest has been hygienically bonded with the side walls on all sides. With lower lying air trap, large perforated plate silt box and a folding, lockable stainless steel bar grade cover. Vertical drain necks. Surface grain blasted.
